2D Drawing

Easily switch between 2D and 3D design data.

Transforming design collaboration:

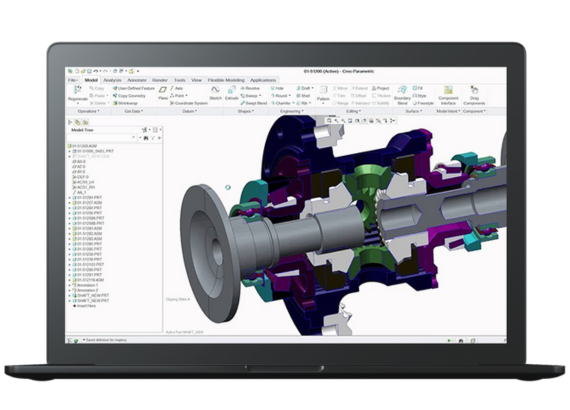

Creo Layout is an intuitive 2D CAD tool that enables your product design team to create detailed 2D concepts, including dimensions and annotations. You can then generate 3D geometry directly from the 2D data without needing to switch CAD systems or transfer files to 3D CAD specialists. This approach allows you to leverage the 2D data to produce precise 3D models that align perfectly with your original design intent. By automating the process, you can ensure your CAD deliverables are continuously and seamlessly updated.
